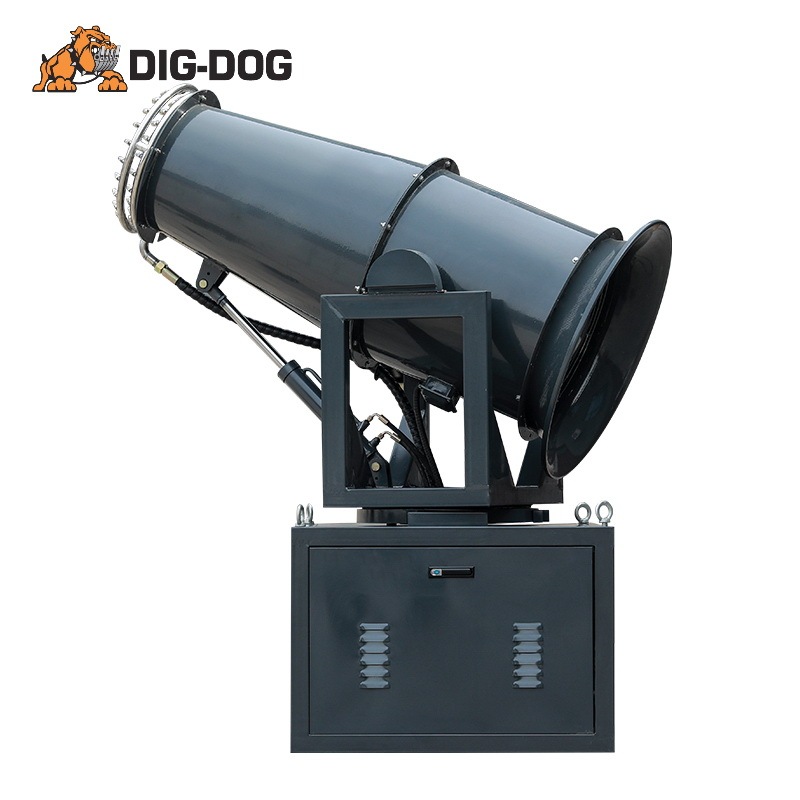

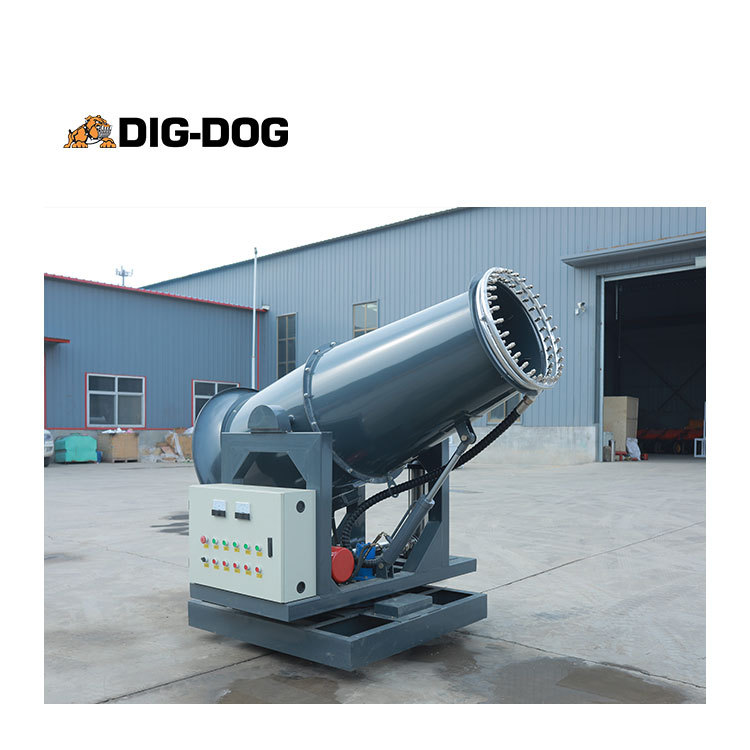

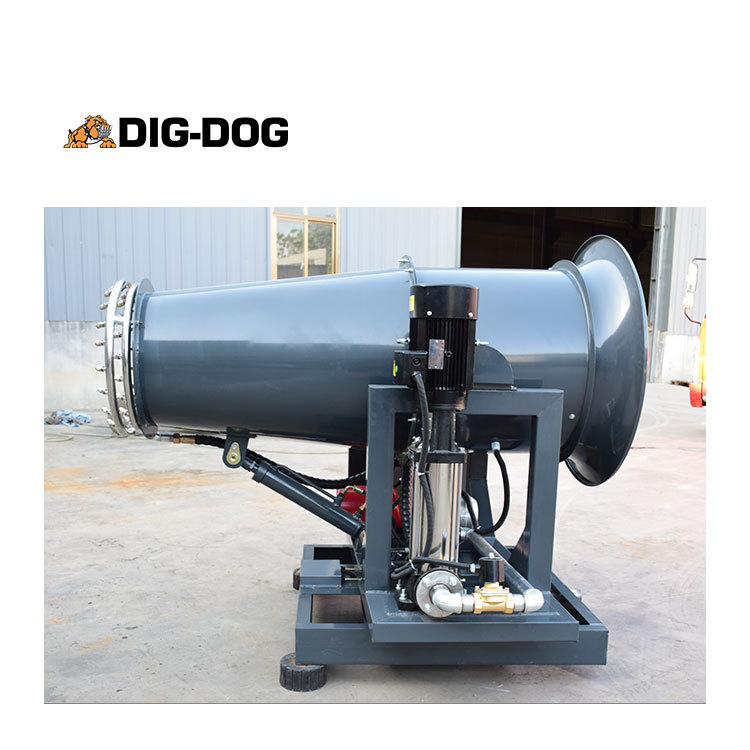

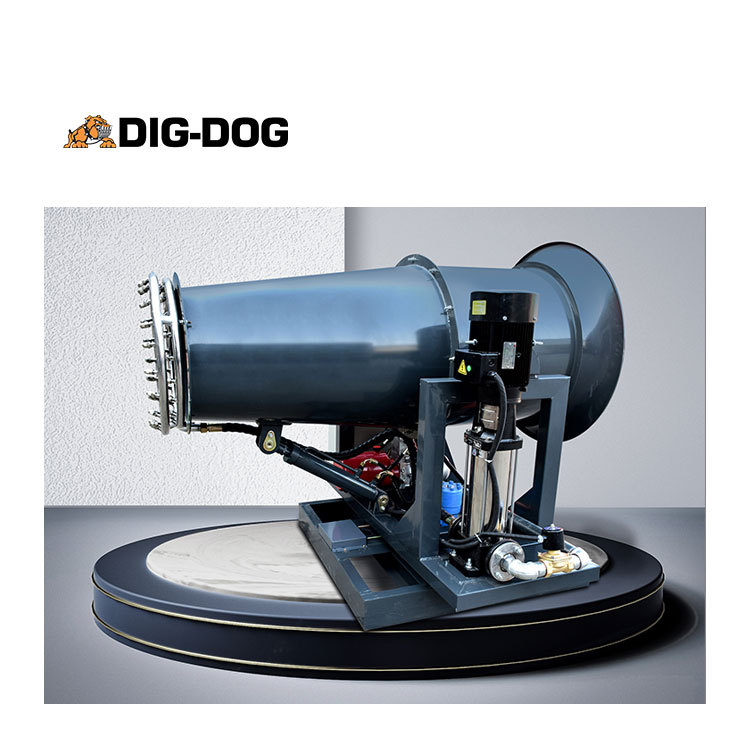

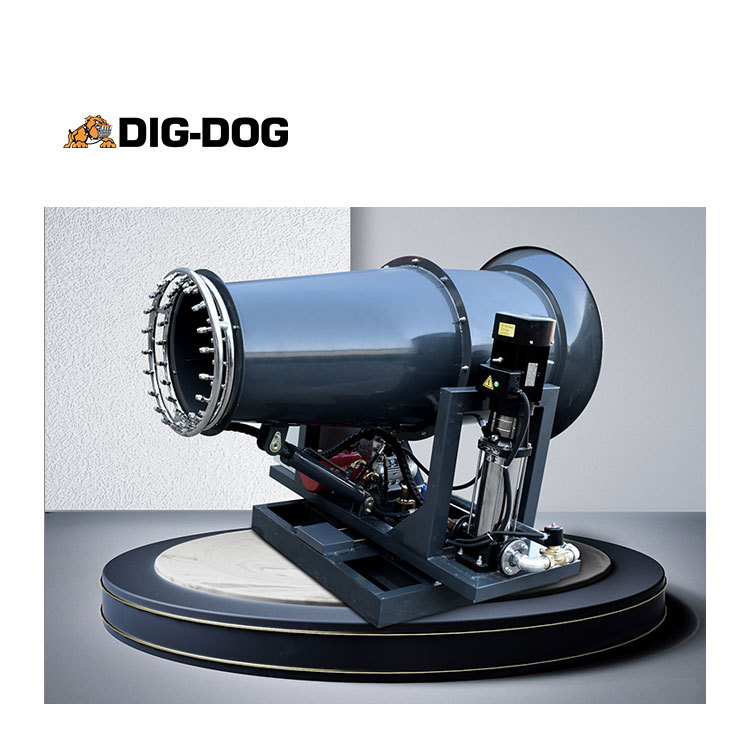

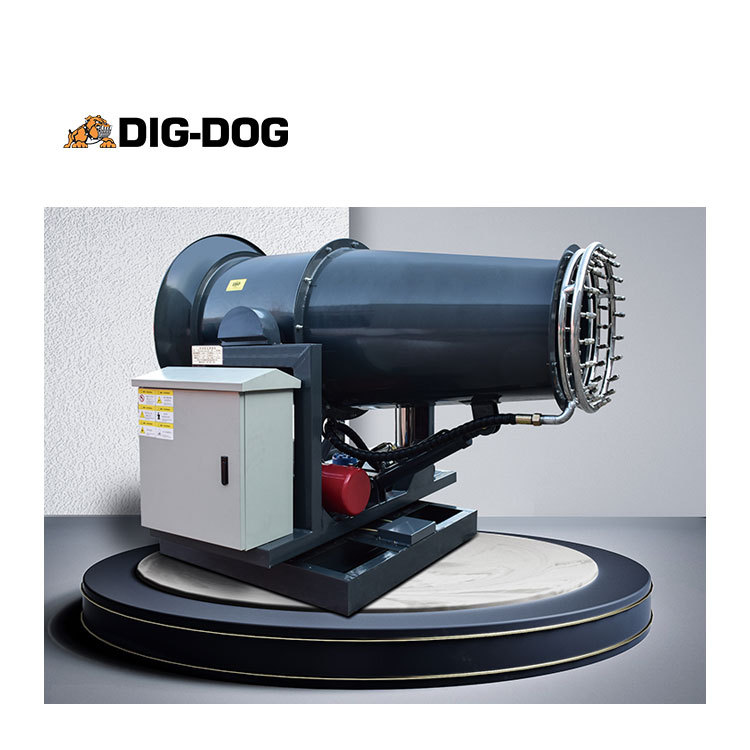

The principle of dust suppression of DIG-DOG fog cannon is to atomize water into water droplets with dust size through high pressure, and under the action of fan, the water fog is projected to far away. The dust particles become wet by contacting with the water droplets, and the wetted dust particles continue to adsorb other dust particles and gradually condense into particle clusters and settle under their own gravity. DIG-DOG fog machine can produce 30-120um water mist particles, and the dust particles in the dust starting point or work area become wet by contacting with each other. The fixed fog cannon has a left and right rotation angle of ±160°, and has the ability to completely suppress dust below 200 microns, and the water content of the material surface only increases by 0.3%.
Product application range/application area:
Open-pit coal field, blasting and demolition dust, construction site dust control, coal pile dust reduction, open-pit mine mining, ports, railway station freight terminals, open-air material storage yards, coal logistics parks, power plants, coal shed.
closed unloading areas, truck unloading Dust pollution control at the port, dump truck unloading dust, coastal port loading and transportation, coal transportation, stone yard, cement plant, quarry, bulk powder handling and other dust pollution control;
expressway service area, steel slag waste unloading, shipping, transportation, Local dust control for mechanical operations, road dust pollution control during vehicle transportation;
airfields, public places, stations, schools, airports, steel mills, casting and other high-temperature industries such as spray humidification, cooling, and dust removal places;
Landscaping, flower and grass nursery, pesticide spraying, municipal sanitation and haze treatment, garbage dump site sterilization and deodorization, disinfection and epidemic prevention, etc.
The Features of DIGDOG Fog Cannon Machine:
Spraying DisSector 60m, Wind Blade Material PAG, Operation Mode Manual/Remote Control/Automatic/Remote, Sound Absorption And Noise Reduction (DB) <85, Water Mist Particle Diameter (Μm) 50-150, Water Consumption 3-5t/H, Fan Power 15kw, Working Pressure 1.5-2.5MPa, Pump Power 4KW, Water Supply Pressure 1-8bar, Power Supply Requirements Three-Phase Five-Wire, 63A, 50HZ, Pump Form Stainless Steel Multistage Centrifugal Pump, Pitch Angle -10°-+40° Inlet Port Interface DN32 Quick Coupling, Horizontal Rotation Angle 340°, Filter Grade 200-400 Mesh.
50HZ, Pump Form Stainless Steel Multistage Centrifugal Pump, Pitch Angle -10°-+40° Inlet Port Interface DN32 Quick Connector, Horizontal Rotation Angle 340°, Filter Grade 200-400 Mesh, Shape Size L1950*W1550*H2120, Installation Mode Fixed/Vehicle-Mounted. Appearance Color Can Be Customized.
Core Technology: Intelligent Control
Intelligent Operation: You Can Set The Running Time, Stopping Time And Cycle Times To Reduce Manpower And Material Resources.
Automatic Alarm: With Water Shortage Alarm And Stop Function To Prevent The Pump From Running Without Water To Damage The Pump.
Winter Anti-Freeze: Automatic Water Discharge.
Automatic Reset: Power Off And Stop, Automatically Reset To The Initial State
