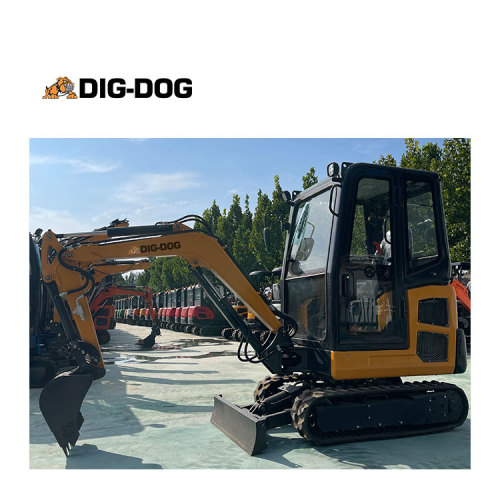

DIG-DOG DG18 Mini Excavator 1.8-2 Ton

Item No.: DG18
DG18 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rub
Description Product parameters Attachments FAQ Review
Description
DIGDOG DG18 MINI EXCAVATOR 1.8-2 Ton



DG18 OverView

DG18 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 ).Can be equipped with a fully enclosed cabin to provide a comfortable environment for work.

DG18 Features & Benefits
●The DG18 mini excavator is used the international famous brand Laidong triple-cylinder water-cooled engine, that with large torque, strong power, efficient fuel saving
(European customers can upgrade the Laidong Euro V engine that meets the EuroV emission standard;
U.S. customers can upgrade to a Kubota engine that meets the EPA4 emission standard);
●Chinese fomus brands Changyuan (HCHC) hydraulic pump and North hydraulic valve , equipped with hydraulic oil radiator. (Upgradable to Italian Casappa plunger pump and load sensing system)
●International famous brand Eaton's travel and swing motors;
● Hydraulic tensioning chassis,  230*48*72 standard rubber tracktrack, mechanical lever operation.(Optional upgrade retractable undercarriage function.)
● 4-pillar open canopy design, cast iron counterweight.More stable and safe. (Optional upgrade of closed cab,  air conditioning, driving more comfortable)
● Standard swing boom function, double-sided pilot operation;
● The machine is equipped with standard bucket width 435MM, bucket capacity 0.06m³;
● The load-sensing system realizes the perfect match between the engine and the main pump, provides accurate flow, improves work efficiency, saves fuel and time;
● Integral reinforced chassis, robot welding, and welding seam forming completely eliminate the influence of human factors, the arc is stable, the penetration depth is controllable, and the forming is beautiful;
● High-end configuration, using hydraulic international famous brands to ensure high reliability of the hydraulic system;
● Products are widely used in indoor demolition, orchard planting, municipal engineering, greenhouses, wasteland reclamation, nursery ditching and fertilization, pipelines, basement renovation, under ground operations, etc;
● The crushing pipeline is standard, and various attachments such as hammers, rippers, grabbers, augers, etc. can be added, and one machine can be used for multiple purposes;
● The iron track and rubber track can be interchanged at any time, adapting to various construction conditions, and the deflection swivel arm can be upgraded, which can be deflected to dig walls easily;

Various Attachments Easy to Install
Wide Range of Applications

2 ton excavator for sale

Packing & Shiping

2 ton excavator for sale
Company Profile

DIG-DOG DMR300 Walk-behind Single Drum Vibratory Road Roller
Dig love, build dream!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG has our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.
2 ton excavator for sale
Product parameters

DIG-DOG  DG18 Multifunctional Mini Excavator 1.8-2 Tonne
Type of tracks Rubber track
Machine weight 3968lbs/1800kg
Bucket Capacity 0.06m3/435mm width
System Pressure  18Mpa
Max. grade ability 350
Max.Bucket Digging Force 14KN
Max.Arm Digging Force 10KN
Operation type Joystick poilt control
Engine Model Laidong 3TE25
Displacement  1.532L
Type Water-cooled 3-cylinder diesel
Max. Power 18.4kW/2350r/min
Max. Torque 92.5N.m
Overall Dimensions Overall Length 3865mm
Overall Width 1050mm
Overall height 2270mm
Chassis width 1050mm
Min. ground clearance 210mm
Cabin height 2270mm
Axle base 1230mm
Blade Width 1050mm
Height 235mm
Max.lift of dozer blade 230mm
Max.depth of dozer blade 275mm
Hydraulic system Pump type Gear pump
Pump capacity 52.8L/Min
Fluid Capacities Hydraulic system 17L
Fuel tank 19L
Motor Traveling motor Eaton OMB-160
Swing motor Eaton SW2.5K-245

Related Models

DIG-DOG DG25 Mini Hydraulic Crawler Digger Factory Price 2 2.5 Ton Small Excavator for Sale
DG10
Power supply: 7 KW Pipe excavation volume: 0.025 m³
Machine weight: 1 ton
DG12
Power supply: 8.3 KW
Pipe excavation volume: 0.03 m³
Machine weight: 1.2 ton
DG15
Power supply: 7 KW
Pipe excavation volume: 0.025
Machine weight: 1.4 ton
DG17
Power supply: 10.3 KW
Pipe excavation volume: 0.035
Machine weight: 1.5 ton
DG18 1.8 ton excavator for sale DG20 2 ton excavator for sale with best price
DG18
Power supply: 18.4 KW
Pipe excavation volume: 0.06
Machine weight: 1.8 ton
DG20
Power supply: 14.2 KW
Pipe excavation volume: 0.07 m³
Machine weight: 2 ton
DG25
Power supply: 22.1 KW
Pipe excavation volume: 0.1 m³
Machine weight: 2.5 ton
DG35
Power supply: 18.4 KW
Pipe excavation volume: 0.12 m³
Machine weight: 3.5 ton
Attachments
DIG-DOG DG18 Mini Excavator 1.8-2 Ton with Multiple Attachments For Sale


Standard configuration: broken pipeline, can be equipped with a variety of crushing hammer, soil, wood, spiral drill and other different accessories, A tractor serves several purposes.Iron track and rubber track can be interchangeable at any time, adapt to various construction conditions, can bias the rotating arm, can deflection work easily undermine the foundation.

Optional configuration: quick change (mechanical | hydraulic) / grip / screw (200 mm | 300 mm) / crushing hammer / booster / Rake / fork / thumb (mechanical | hydraulic) / narrow bucket (260 mm | 300 mm) / clean bucket (800 mm | 1000 mm) / tipping bucket  (800 mm | 1000 mm).

DIG-DOG DG20 2 ton excavator for saleDIG-DOG 2 ton excavator for sale
FAQ
Q: Are you a manufacturer?
A: DIG-DOG is a family brand of BONOVO group, mainly focusing on small earth moving machines and amphibious excavators. We started our factory in 2006, but our industry experience dates back to the 1980s.

 Q: Why choose DIG-DOG over any other company?
 A: We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China. Our design team works closely with customers for any customized orders.

 Q: Which payment terms do you accept?
 A: We can work on T/T bank transfer and 100% irrevocable L/C, we also accept trade assurance orders paid by Alibaba using Credit Card, PayPal, Western Union or Escrow, which is now safe and fast for both. Please contact our customer representatives directly for a specific term.

 Q: What logistics way for product delivery?
 A: 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.

 Q: What are your warranty terms?
 A: We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.

 Q: What is your lead time?
 A: We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-3 weeks. Contact our sales so you can have an accurate lead time based on actual situations.
